Μεταχειρισμένη

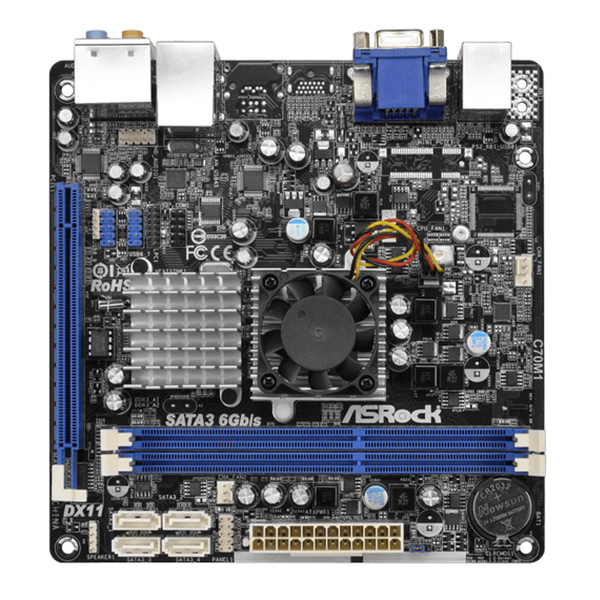

C70M1

• CPU
  - AMD Dual-Core Ontario C-70 APU
  - Supports AMD's Cool 'n' Quiet Technology
  - UMI 2.5 GT/s
• Chipset
  - AMD A50M Chipset
• Memory
  - 2 x DDR3 DIMM Slots
  - Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
  - Max. capacity of system memory: 16GB*



  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 32Mb AMI UEFI Legal BIOS with GUI support
  - Supports "Plug and Play"
  - ACPI 1.1 Compliant wake up events
  - Supports jumperfree
  - SMBIOS 2.3.1 support
  - DRAM, FCH, +1V, +1.8V Voltage multi-adjustment
• Graphics
  - Integrated AMD Radeon™ HD 7290 graphics
  - DX11 class iGPU, Pixel Shader 5.0
  - Max. shared memory 512MB
  - Supports D-Sub with max. resolution up to 2560x1600 @ 60Hz
• Audio
  - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• LAN
  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111E
  - Supports Wake-On-LAN
  - Supports LAN Cable Detection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode)
• Storage
  - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
• Connector
  - 1 x CIR Header
  - 1 x COM Port Header
  - 1 x CPU Fan Connector (3-pin)
  - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
  - 1 x 24 pin ATX Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• Rear Panel I/O
  I/O Panel
  - 1 x PS/2 Keyboard/Mouse Port
  - 1 x VGA Port
  - 1 x Optical SPDIF Out Port
  - 4 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• Unique Feature
  - ASRock Instant Boot
  - ASRock Instant Flash
  - ASRock APP Charger
  - ASRock XFast LAN
  - ASRock XFast RAM
  - ASRock Crashless BIOS
  - ASRock OMG (Online Management Guard)
  - ASRock Internet Flash
  - ASRock UEFI System Browser
  - ASRock Dehumidifier Function
  - ASRock Fast Boot
  - ASRock Restart to UEFI
  - Hybrid Booster:
  - ASRock U-COP
  - Boot Failure Guard (B.F.G.)
  - Good Night LED
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
• Hardware Monitor
  - CPU temperature sensing
  - Chassis temperature sensing
  - CPU Fan Tachometer
  - Chassis Fan Tachometer
  - CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
  - CPU, Chassis Fan multi-speed control
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor
  - Mini-ITX Form Factor
• OS
  - Microsoft^® Windows^® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant



  *This motherboard does not support Windows^® 7 64bit GPT(UEFI) mode OS.
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
